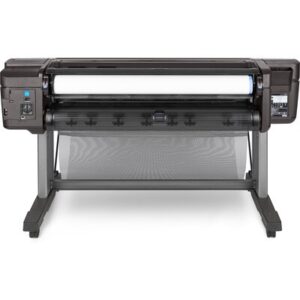

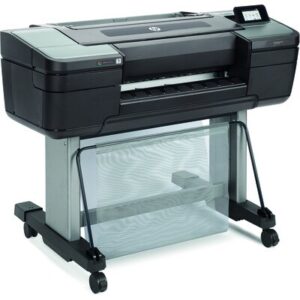

HP DesignJet Z9+ 44-in PostScript Printer

Deliver photo-quality prints 2.5 times faster1 without losing quality. Simplify your workflow with new tools in the HP Applications Center.

This printer is intended to work only with cartridges that have a new or reused HP chip, and it uses dynamic security measures to block cartridges using a non-HP chip. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. A reused HP chip enables the use of reused, remanufactured, and refilled cartridges.




Functions Print
Model size 44 in
Print speed Fast: 769 ft²/hr on plain media; Normal: 185 ft²/hr on coated media; Best: 48 ft²/hr on glossy media[1]
Print technology HP Thermal Inkjet
Printer drivers included Raster and PostScript drivers for Windows and macOS; PDF driver for Windows 8 and above
Print quality color (best) Up to 2400 x 1200 optimized dpi
Print languages Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG, CALS G4, HP-GL/2, HP-RTL
Number of print cartridges 9 (cyan, magenta, yellow, matte black, photo black, chromatic red, chromatic green, chromatic blue, gray), optional gloss enhancer
Ink types Pigment-based
Line accuracy ±0.1%[5]
Color accuracy Median < 1.6 dE2000, 95% of colors < 2.8 dE2000[7]
Color Stability < 1 dE2000 in less than 5 minutes[8]
Print repeatability Average < 0.5 dE2000, 95% of colors < 1.4 dE2000[8]
Maximum optical density (black) 4 L* min/2.5 D[8]
Connectivity, standard Gigabit Ethernet (1000Base-T) (802.3, 802.3u, 802.3ab); Hi-Speed USB 2.0 certified interface for direct printing from USB flash drive
Network ready Standard
Memory 128 GB (virtual)[9]
Internal Storage 500 GB self-encrypting
Finished output handling Roll feed, rear sheet feed, media output bin, automatic horizontal cutter
Media sizes standard (sheets, rolls) 8.3 to 44-in wide sheets; 11 to 44-in rolls
Media sizes, custom 8.3 x 11 to 44 x 66 in
Media types Photographic, fine art printing material, self-adhesive, banner and sign, bond and coated, backlit
Roll external diameter 5.3 in
Media thickness Up to 31.5 mil
Power Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 2 A max
Power consumption <100 W (printing); <32 W (ready); <6.5 W (sleep); 0.1 W (off)
Energy star certified Yes
Operating temperature range 41 to 104ºF
Minimum dimensions (W x D x H) 71 x 27.4 x 39.3 in
Weight 207 lb
UPC number (ABA) 194441079944; (B1K) 192018667716
Package dimensions (W x D x H) 76.8 x 30.2 x 28.3 in
Package weight 286 lb
What’s in the box HP DesignJet Z9+ PostScript Printer, printheads, introductory ink cartridges, printer stand and media bin, spindle, 3-in core adapter, quick reference guide, setup poster, power cord
Software included HP Click printing software, HP PrintOS, HP Web Jetadmin, HP DesignJet Utility including HP Color Center, HP Partner Link, HP JetAdvantage Security Manager (optional), HP SmartStream (optional), HP SmartTracker (optional)
Manufacturer Warranty 1 year limited hardware warranty

Additional information


1. Embedded in the HP DesignJet Z9+ Printer series is an i1 spectrophotometer from X-Rite. Close collaboration between HP and X-Rite ensures a reliable solution that’s been thoroughly tested to meet customer demands for ease, quality, and dependability.

3. Vertical trimmer and dual rolls included with the HP DesignJet Z9+dr 44-in PostScript® Printer with V-Trimmer only. Up to 20% reduction in post-processing labor time based on internal HP testing compared to HP DesignJet Z9+dr series printers without built-in vertical trimmer.

5. Requires an HP Applications Center account, Internet connection, and connected Internet-capable device. For more information,

6.For a list of HP certified RIPs,
